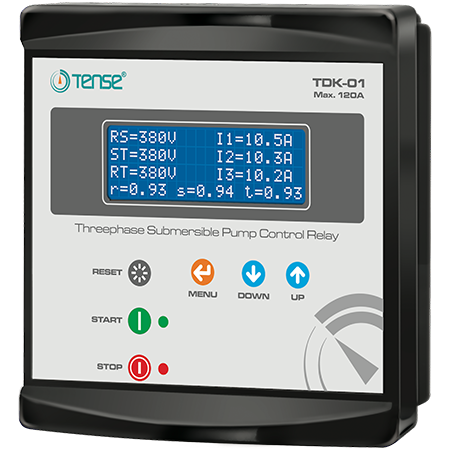

Submersible pump control relay, well tank level indicator

Protection relay – submersible pump control unit, pump protection, pump operating relay, borehole level gauge, well level gauge, tank level gauge, TDK-01, TDK-02 (TENSE)

• 1A – 120A (TDK-01) / 2A – 300A (TDK-02) submersible pump.
• Pump protection against dry running

• Possibility to operate without sons

• High and low slash kit

• High/low voltage protection

• High/low current protection

• Protection against voltage asymmetry

• Maintains error logs

• Star-delta contact output

• 2 adjustable alarm outputs

• Measuring transformer included
