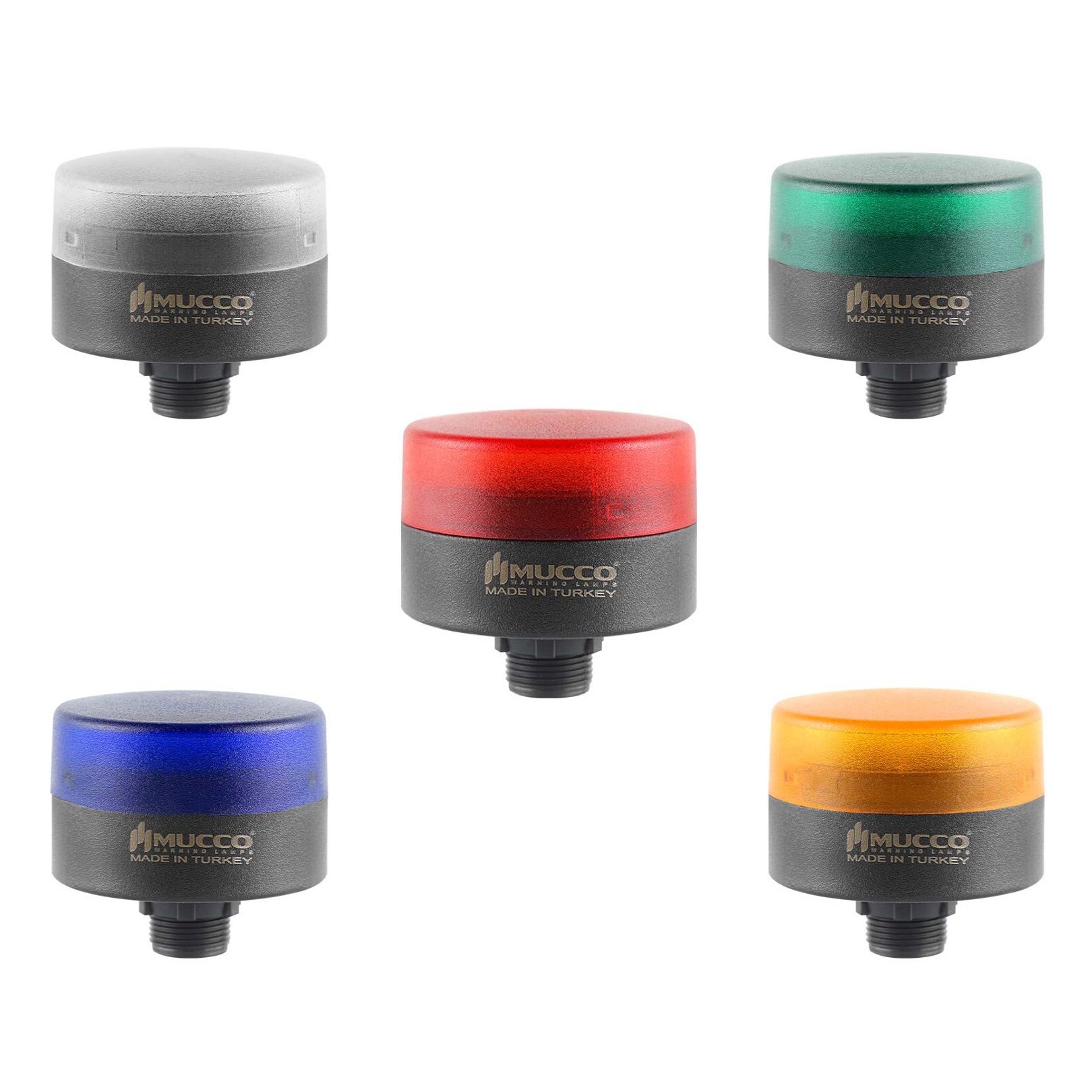

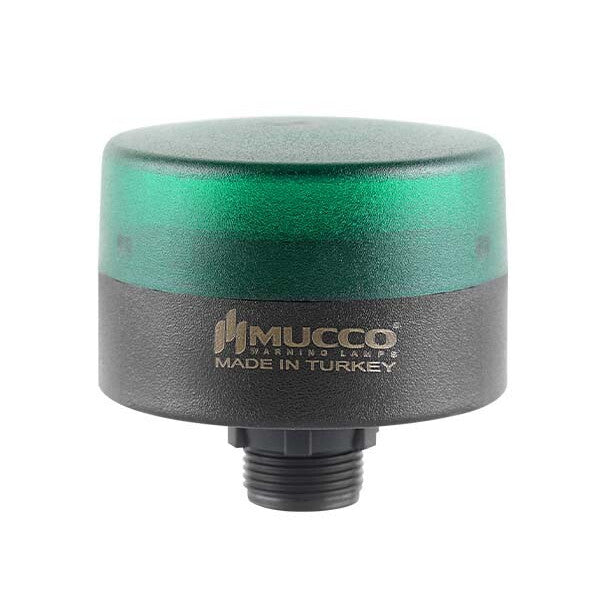

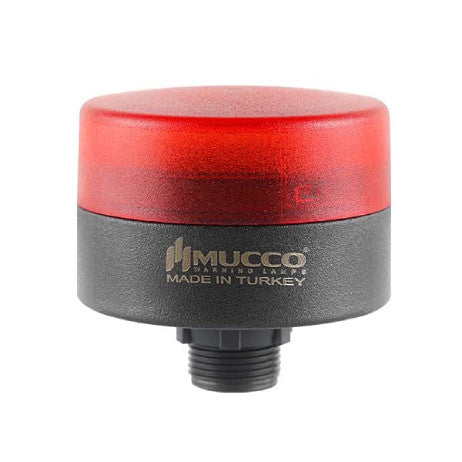

SNT-MS725, SNT-MS715 signal beacon with buzzer, ø70mm, connecting nut
170,00 lei – 192,00 lei
Description
Series 70 SNT-MS725 , SNT-MS715 signal beacon with buzzer, ø70mm, connecting nut, manufacturer MUCCO (Turkey)
| Category | Signal beacon | |
| Rated voltage, current consumption | 24V/DC (without buzzer) | 110mA ±10% |
| 24V/DC (with buzzer) | 150mA ±10% | |
| 40~260V AC/DC (without buzzer) | 78mA ±10% 50-60 Hz | |
| 40~260V AC/DC (with buzzer) | 95mA ±10% 50-60 Hz | |
| Material | ABS (body) + polycarbonate (cover) | |
| Cover color | Red, yellow, green, blue, white | |

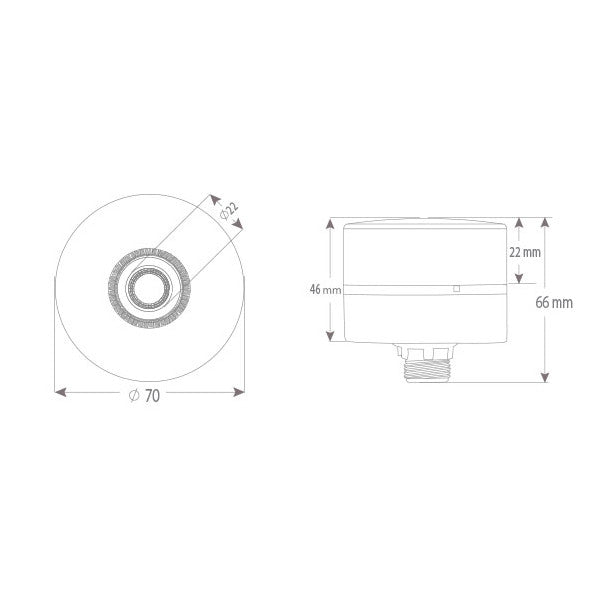

| Cover diameter | ø70 mm (nut M22 – end cap ) | |
| Light source | SMD LED | |
| Optical signal type | steady light, flashing | |
| Input response | On/off: max. 10 ms | |
| Acoustic signal type | 1 tone (wired control) | |
| Alarm | 94 ~ 100 dB at 1 m (3.3 ft) | |
| Connection | Wire | |
| Mounting type | Surface, wall | |
| Operating Temperature | -20°C to +50°C (-4°F to +122°F) | |
| Life expectancy | Minimum 50,000 hours | |
| Degree of protection | IP65 | |
| Protection |
Water, dust, heat and UV resistance |
|
| Certificates and proof of quality | ISO-9001, CE, RoSH2 and EAC |
