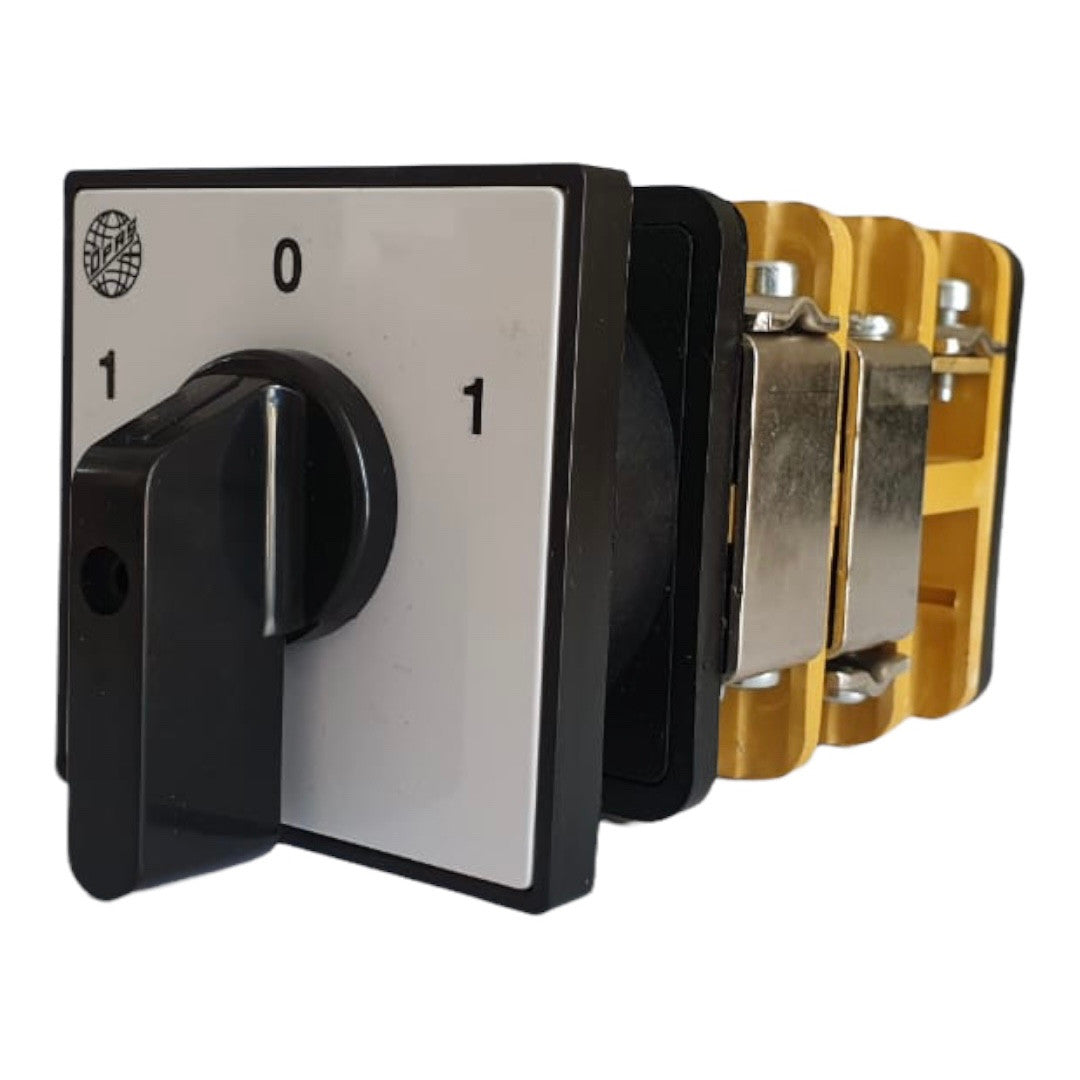

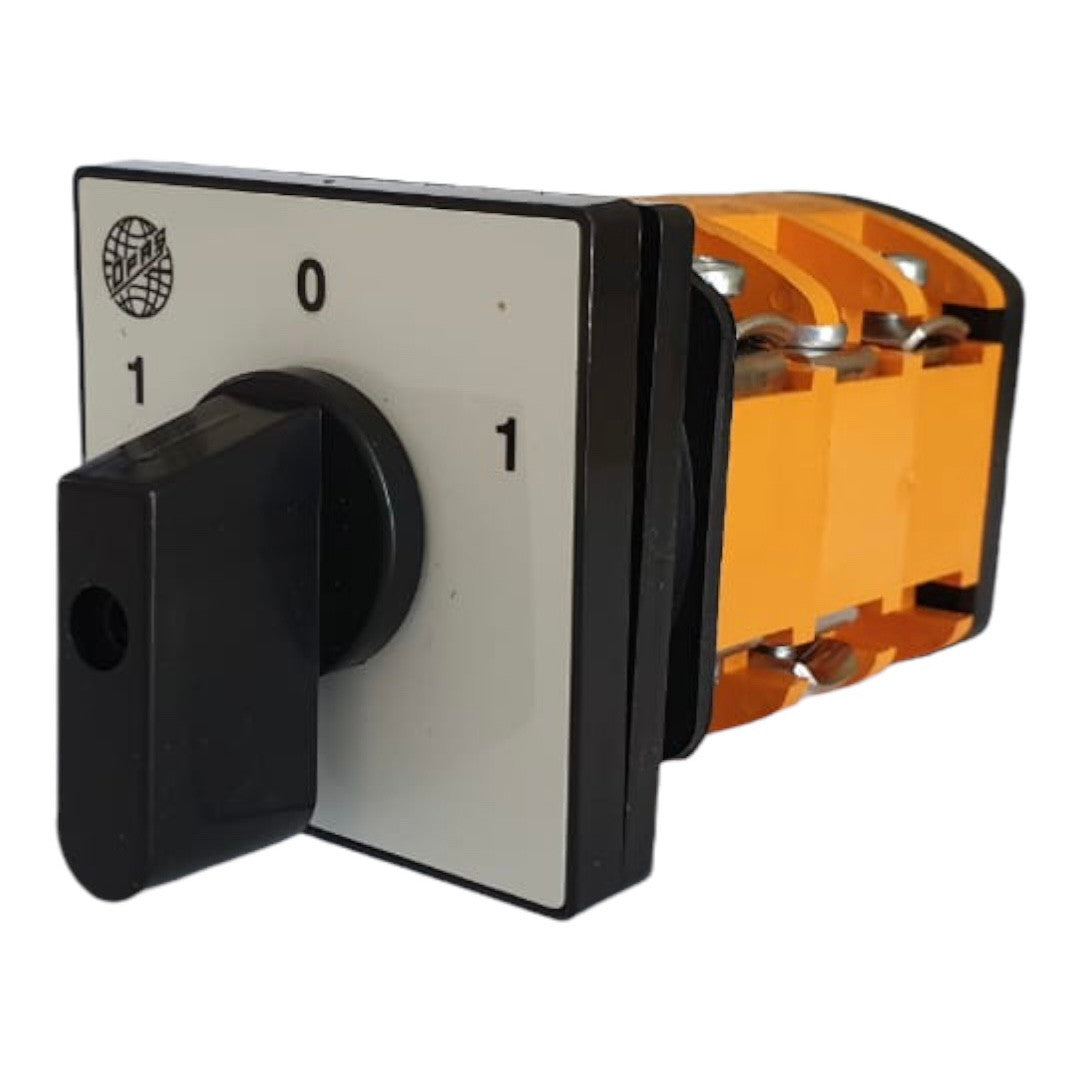

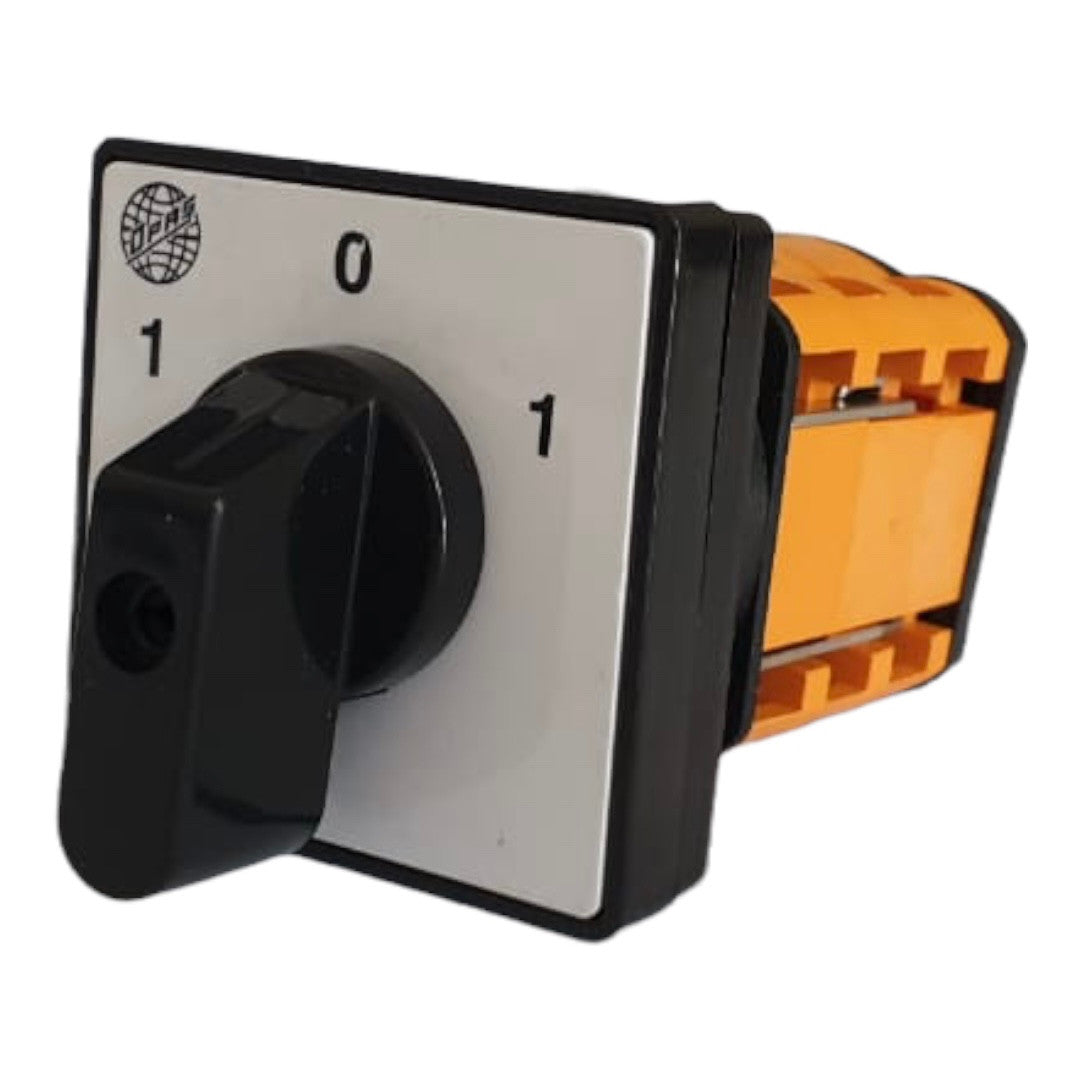

Reversing cam switch / Reversing rotary switch 1-0-1, 3 poles, 10-120A

Reverse Rotary Switch 1-0-1, 3 Pole, 10-120A , YPT304 manufacturer OPAŞ (Turkey)

Reversing cam rotary switch designed to change the direction of rotation of electric motors.

Packet switches are designed for manual switching of low voltage circuits. They are used for making main and control circuits, switching on and off electric motors and other low power devices. The advantages of this series of switches are compact size, electrical and mechanical resistance.

Technical specifications

• Articulated design.
• Type of device: rotary switch

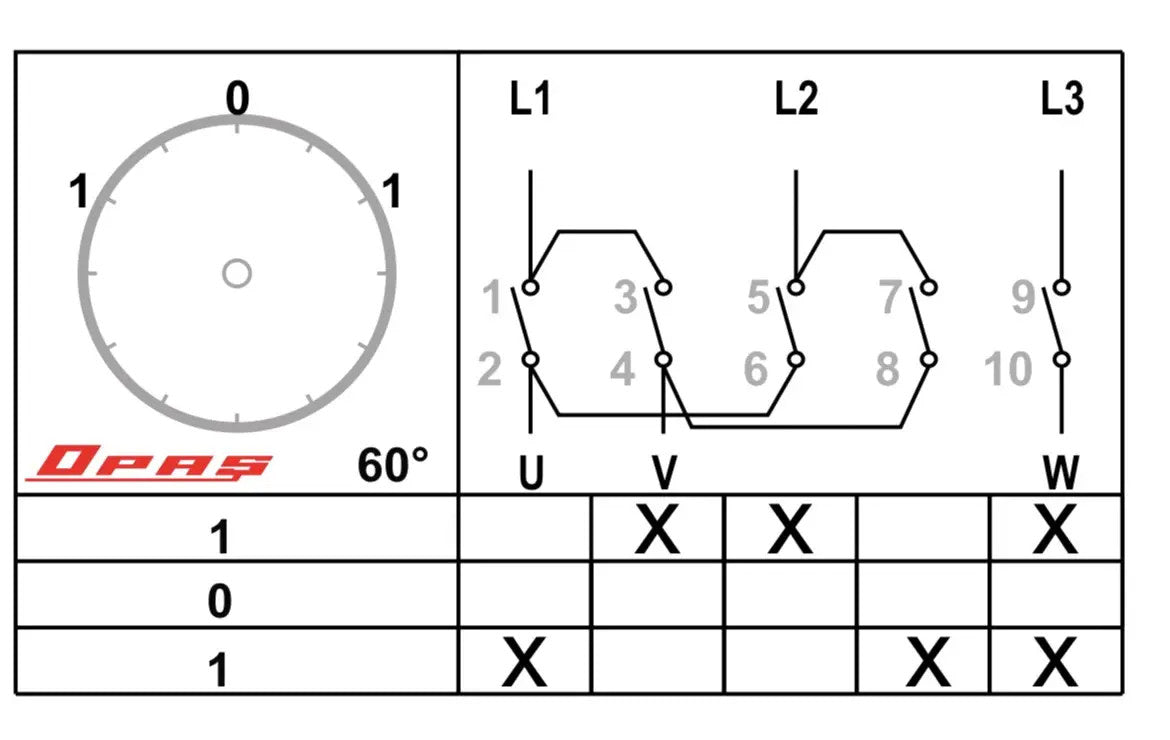

• Switching scheme: 1-0-1 9 (reverse)
• Number of poles: 3
• Type: Built-in
• Number of phases: 3-phase
• Protection: No
• Degree of protection against dust and water: IP20
• Operating temperature range: -30 to +55°C
• Manufacturer.
• Country of manufacturer: Turkey
