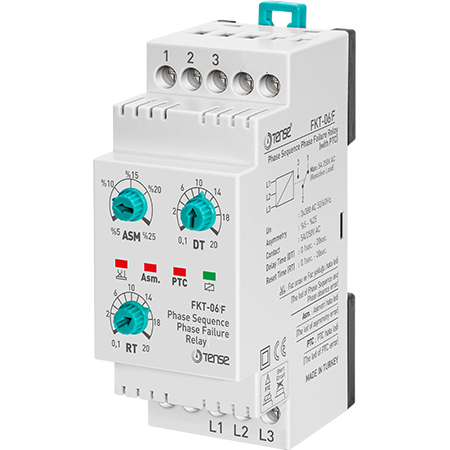

Three-phase monitoring/protection relay for phase/asymmetry/voltage failure control

Three-phase monitoring/protection relay for sequence control, tripping, phase asymmetry, overvoltage, undervoltage with timer. FKT-06/06F (ENERGIZED)

Phase protection relays are designed to protect three-phase loads from damage caused by line voltage.

• Overvoltage: 500 V (fixed)
• Undervoltage: 240V (fixed)
• Asymmetry: 5% – 25% (adjustable)

• Timer: 0.1 s – 20 s (adjustable)

• Phase failure protection

• Phase sequence control (FKT-06F)

• DIN rail mounting

• Width 35.6 mm
