Multifunction time relay (10 functions) 12V – 240V AC/DC with 1 switching contact.

The time relay is multifunctional, designed to control time processes in automation systems in production and household. This relay can be used in industrial equipment – coffee or seed roasting, cooking of meat products, packaging / wrapping lines, as well as in houses or apartments, for example, to control a fan on the toilet or lighting on the staircase.

The 10 built-in time functions cover a wide range of tasks: for example, to organize automatic ventilation processes, opening/closing windows, periodically switching on heating or ventilation, for lighting or rotating advertising signs, in washing machines, bouncing control inputs, rotation – delay on, delay off, delay on and off at the same time, etc.

It should be noted that this time relay is also versatile in terms of performance – it can operate with AC and DC current in the range of 12 to 240 volts!

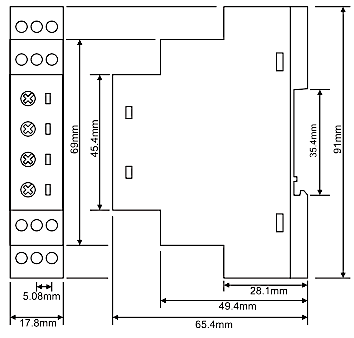

The time relay is mounted on a standard 35mm DIN rail

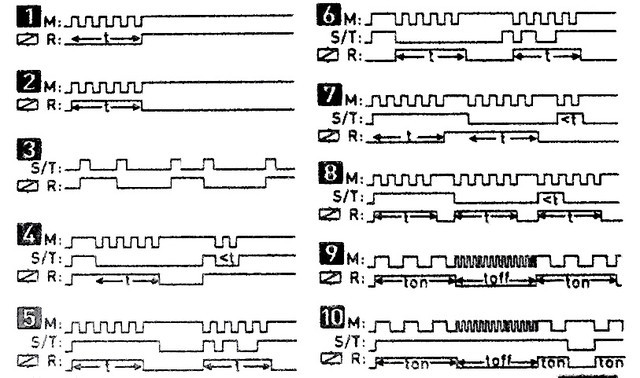

Bistable relay 12v 24V 48v 110v 230 AC DC
Delayed start 12v 24V 48v 110v 230 AC DC
Delayed return 12v 24V 48v 110v 230 AC DC
Gap start flasher 12v 24V 48v 110v 230 AC DC
Delayed start-up after switching and delayed 12v 24v 48v 110v 230 AC DC
Gap-start flasher 12v 24V 48v 110v 230 AC DC
Delayed start after switching on and delayed return after switching off the control contact (ON/OFF DELAY) 12v 24V 48v 110v 230 AC DC
Pulse generator 12v 24V 48v 110v 230 AC DC
SINGLE SHOT falling edge 12v 24V 48v 110v 230 AC DC
Delayed return after SINGLE SHOT 12v 24V 48v 110v 230 AC DC

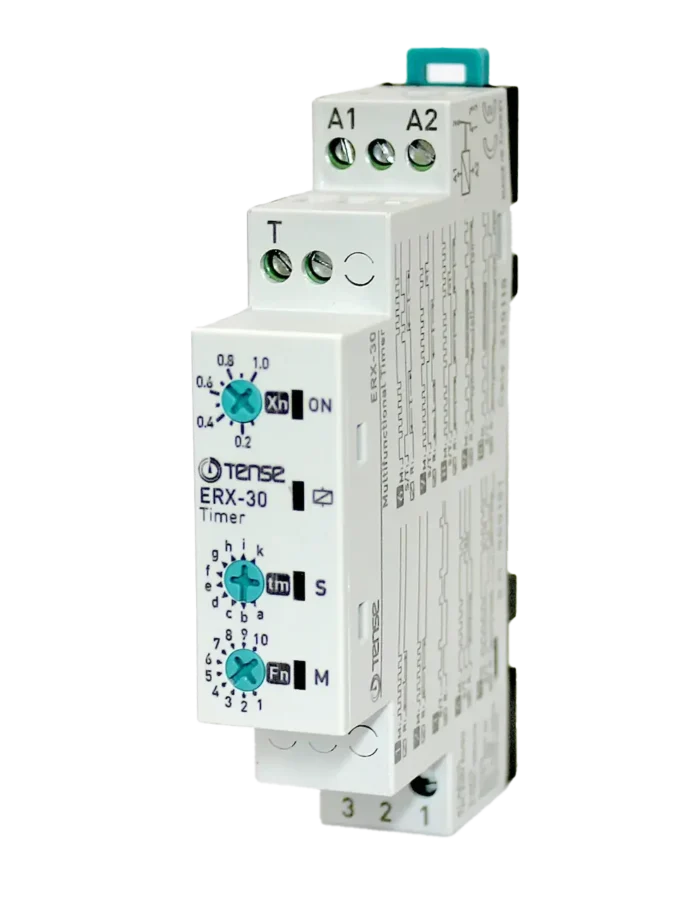

The ERX-30 universal time relay easily replaces more expensive analogs on the market – E1ZM10, MUR3, MXR1, IZT, E1ZMQ10, MFZ12-230V, ZR-67-BAT, CRM-91H, PCU-511, PCU-520, RF-520, 810.230.00001, 83.02.0.240, PCA-511, RF-511, REV-201, REV-120, CT-MHD, THC-M1, PCU-501, PCU-530, PCM-10, 600XU-A-1-CU, BMR TRF10, CRM-91H /UNI , MCR-MB-003, MCR-MA-003
