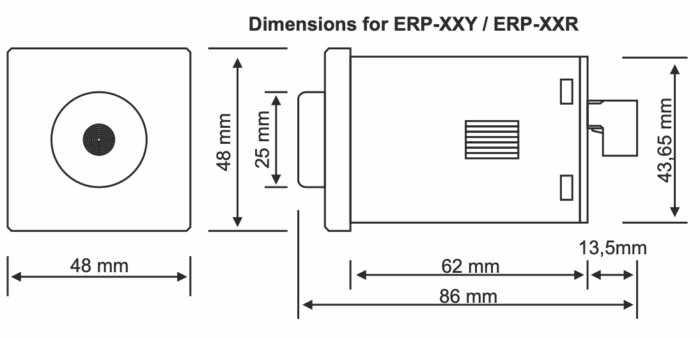

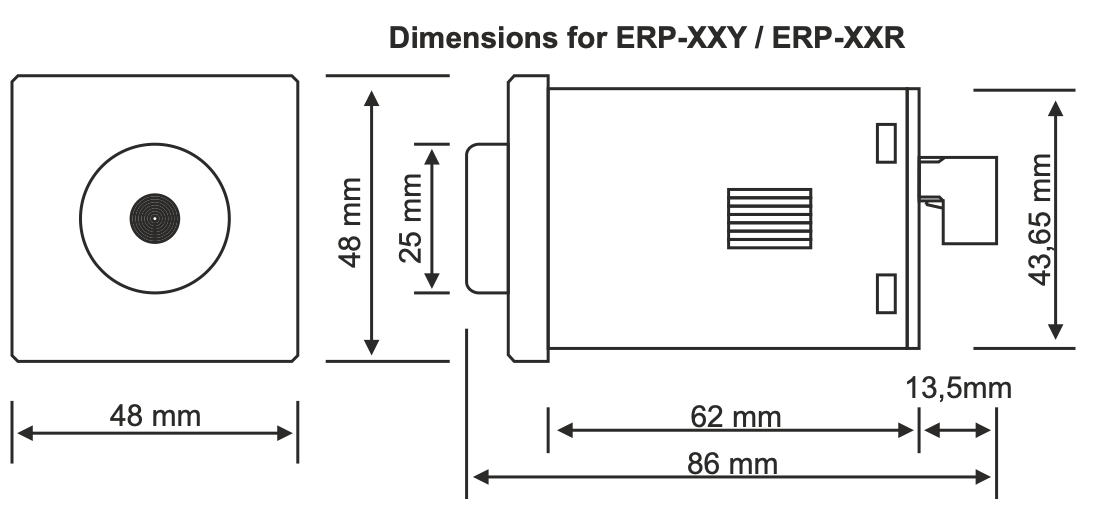

Time delay relay 230 V/AC (ON DELAY)48 x 48 mm
80,00 lei
Time delay ON-DELAY built-in monofunctional relay 230 V/AC with 1 switching contact.
The time delay/time relay is used to switch loads in stages: electric boilers, furnaces, heaters, etc. and thus prevents current surges in the network and tripping of circuit breakers due to large overvoltages.
It can also be used to coordinate the switch-on time of several devices in machines, appliances or other equipment.
Time range:

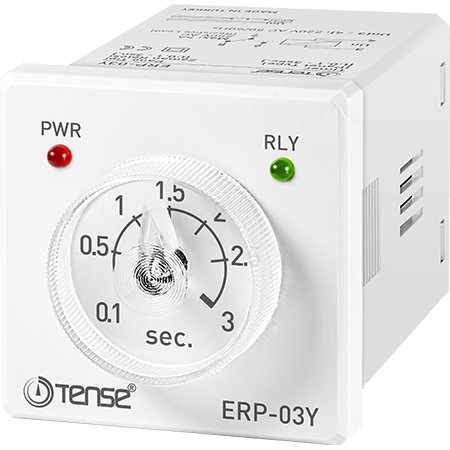

ERP-03Y – 0-3 s
ERP-12Y – 0-12 s

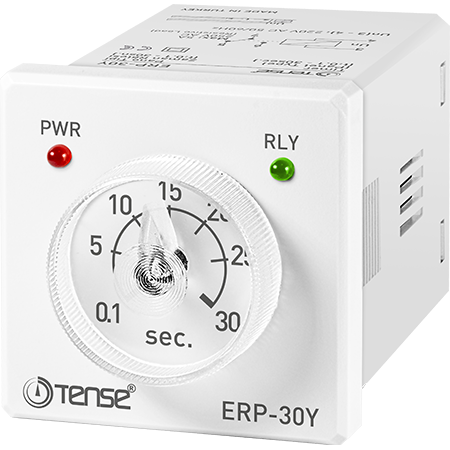

ERP-30Y – 0-30 s

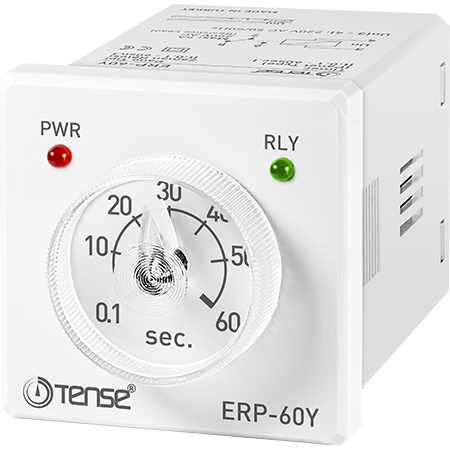

ERP-60Y – 0-60 s
ERP-03DY – 0-3 min.
ERP-12DY – 0-12 min.
ERP-30DY – 0-30 min.

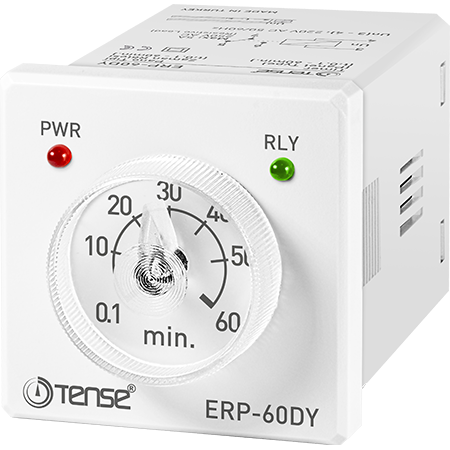

ERP-60DY – 0-60 min.
Technical data
Switching contact: max. 5A/250VAC
Operating frequency: 50/60 Hz.
Operating power: <4VA
Operating temperature: -20 °C …. +55 °C
Connection type: Plug-in clamp
Fixing: Clamp: clamping yoke
