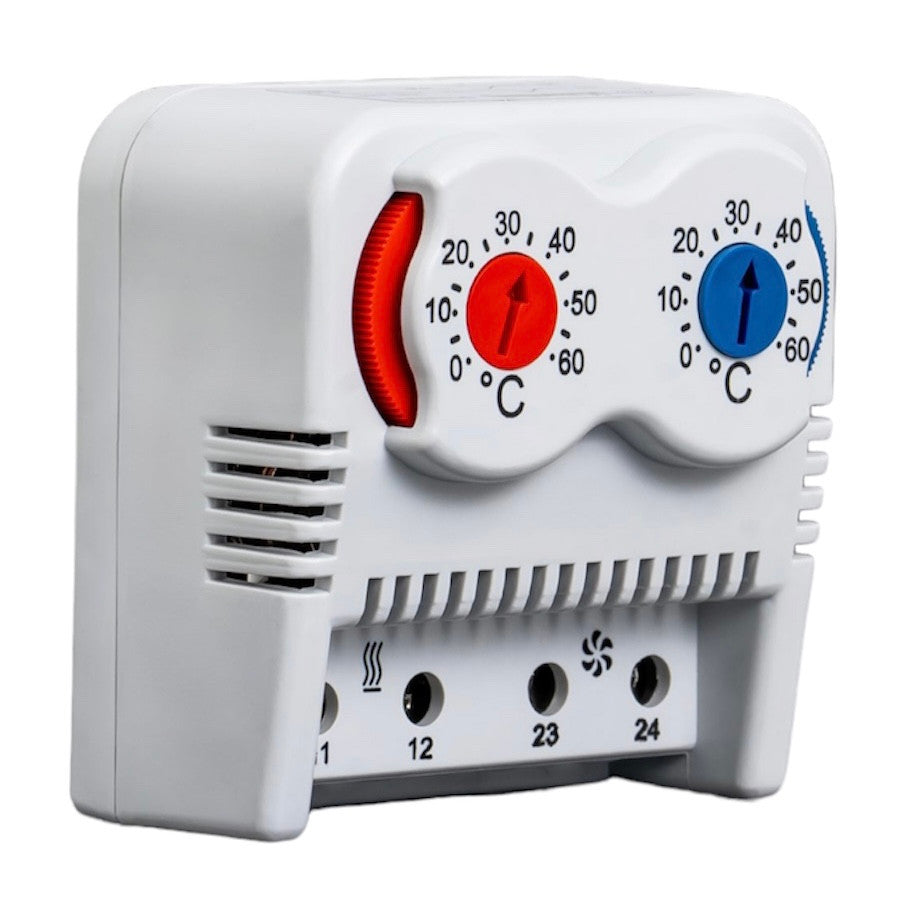

PTHVT Dual / double bimetal thermostat NC+NO switching, range 0-60°C Plastim
75,00 lei
132 in stock
Dual bimetal thermostat PTHVT Dual thermostat NC+NO (cooling/heating), switching, 0-60°C, bimetal
Single thermostat. 220(250) V AC. Bimetal sensor with type, heating function. electrical connection with 4 terminals 2,5mm2. mounting mode on 35mm DIN rail, cross rails, on mounting panel.
Used to connect both fans (coolers/air conditioners) and heating elements – heating elements, panel heaters, heated floors, heating cables, heat fans.
|
Characteristics |
PTHVT |
|
Contact type |
NC+NO |
|
Setting range |
0-60 / 0-60 °C |
|
Potentiometer colour |
red / blue |
|
250V AC / 120V AC |
10 (2) 15 (2)A |
|
Sensor type |
Bimetal |
|
Contact Type |
Snap Action |
|
Lifetime |
> 100.000 |
|
Electrical connection |
4-pole terminal, screw terminals |
|
Plastic material |
UL94 V0 ABS Flame Retardant |
|
Degree of protection |
IP20 |
|
Operating temperature |
-25 / +80 °C |
|
Storage temperature |
-45 /+80°C |
|
Installation |
DIN rail 35mm |
|
Dimensions HxWxD |
65x59x42 mm |
|
Weight |
80 g |
