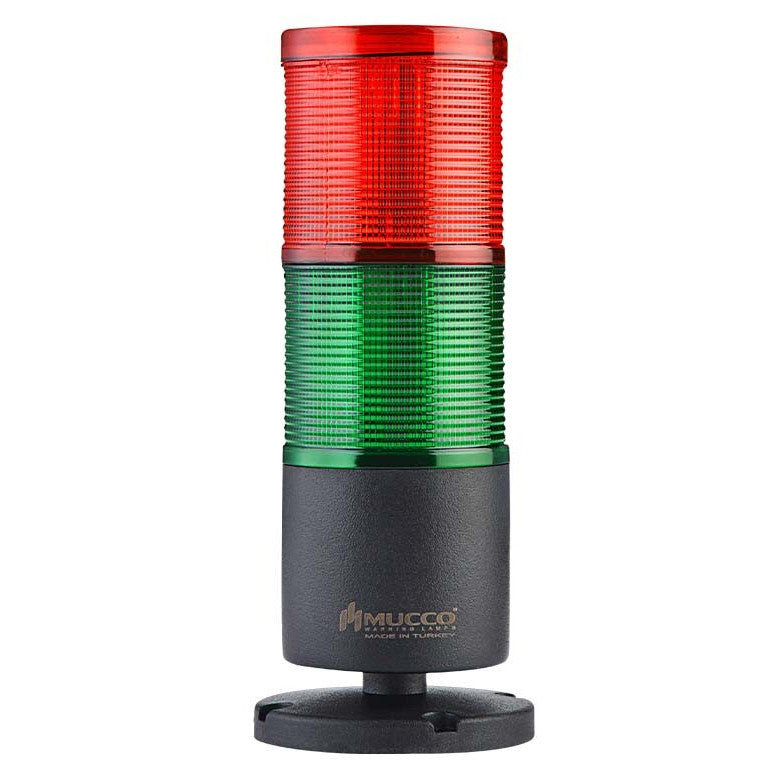

Double layer LED post with surface mount buzzer

Rated voltage, inrush current

12-24 V DC 130 mA ±10% (SNT-7013-FB2)

40-250V AC/DC,

20mA ±10% 50-60 Hz (SNT-7022-F2)

Degree of protection

IP65, water, dust, heat and UV resistance

Cover colour

Red-green (other combinations available as options)

Light source

SMD LED

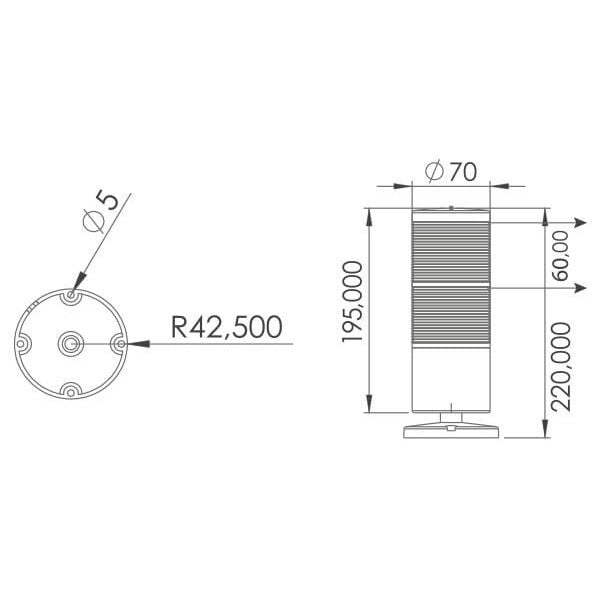

Cover diameter

ø70 mm

Volume

103~116dB/1m (SNT-7013-FB2)

Opticalsignaltype

Flashing

Acoustic signal type

Buzzer, 1 ton (SNT-7013-FB2)

Input response

On/off: max. 10 ms

Operating temperature

-20 °C to +50 °C (-4 °F to +122 °F)

Life expectancy

Minimum 50,000 hours

Material

ABS (body) + polycarbonate (cover)

Mounting method

Surface mounted (other mounting methods are possible with accessories)

Certificates and quality documents

ISO-9001, CE, RoSH2 and EAC
