Double beacon flashing in obstacle / one light in standby mode

Light intensity

Rated voltage, inrush current

Low Intensity – Type B – 32cd

85-250V AC/DC

40mA ±10% 50-60 Hz (SNT-U125-D1-22)

Degree of protection

IP65, water, dust, heat and UV resistant

Cover colour

Red, yellow, green, blue, white

Light source

SMD LED

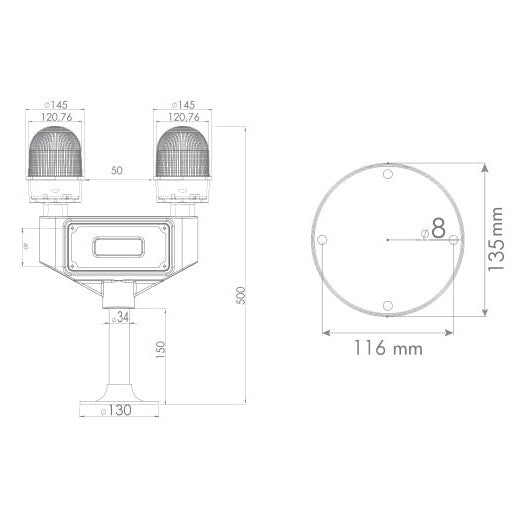

Cover diameter

ø125 mm

Volume

–

Opticalsignaltype

steady light, flashing, strobe

Acoustic signal type

–

Input response

On/off: max. 10 ms

Operating temperature

-20 °C to +50 °C (-4 °F to +122 °F)

Life expectancy

Minimum 50,000 hours

Material

ABS (body) + polycarbonate (cover)

Cast metal

Mounting method

Wall mounted

Certificates and quality documents

ISO-9001, CE, RoSH2 and EAC
