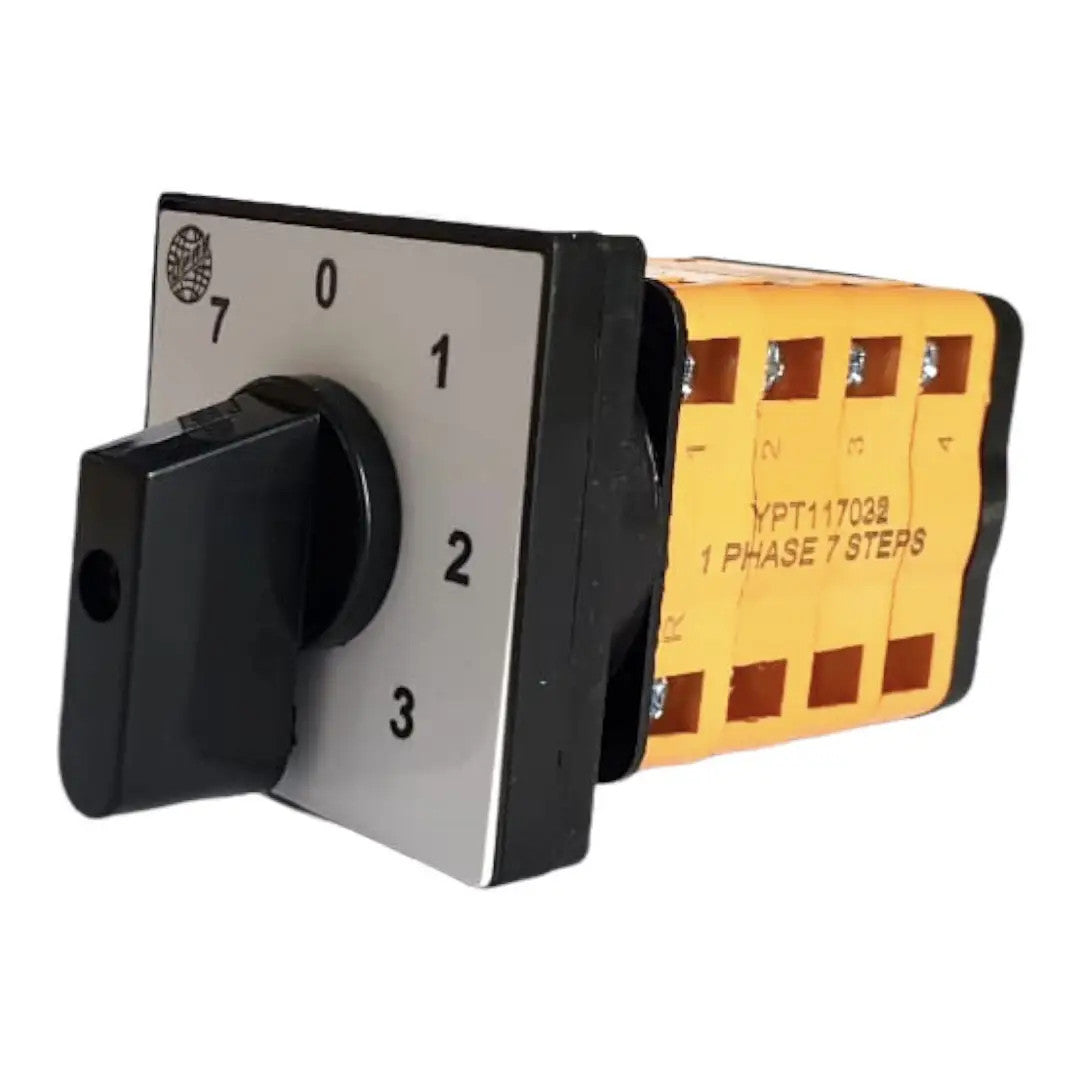

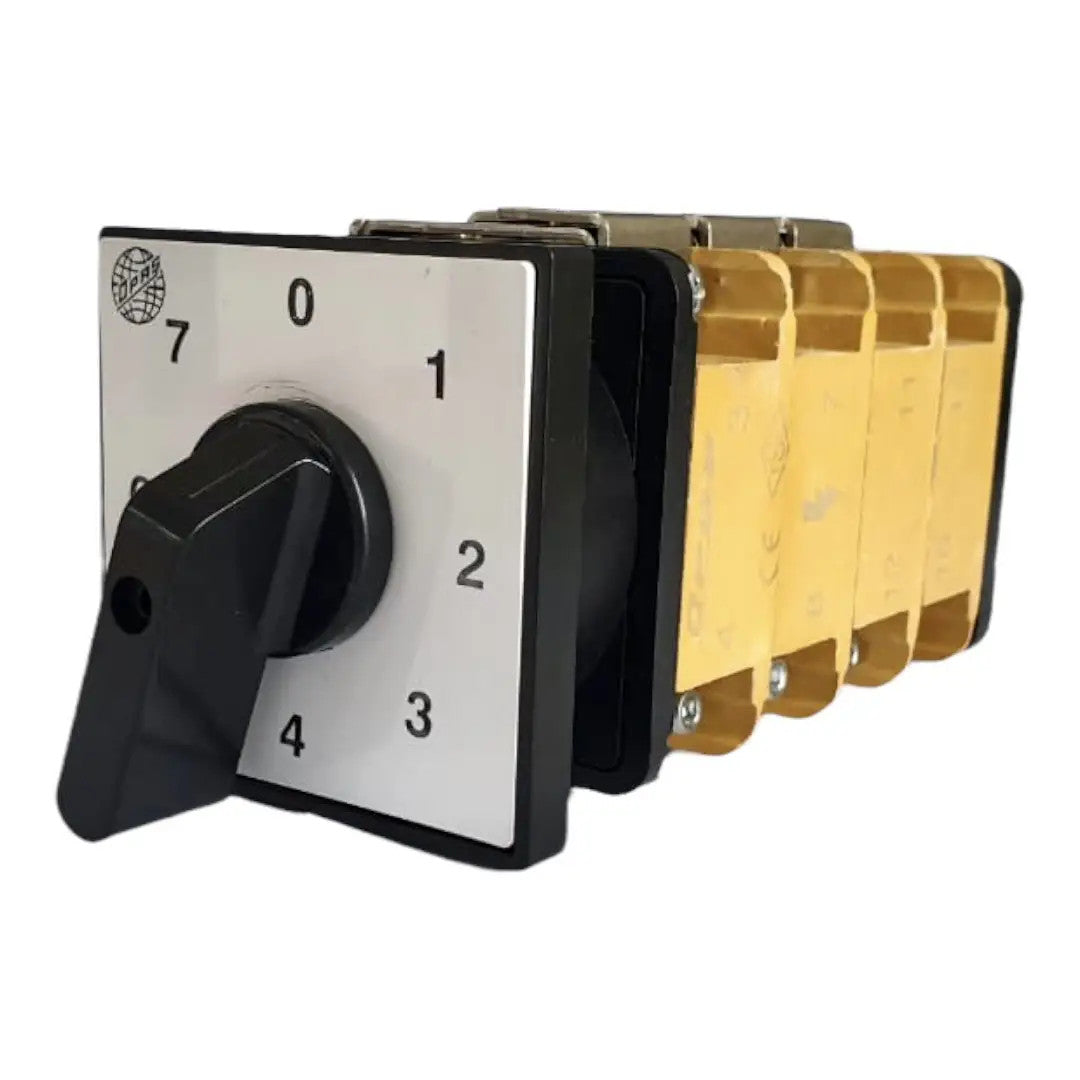

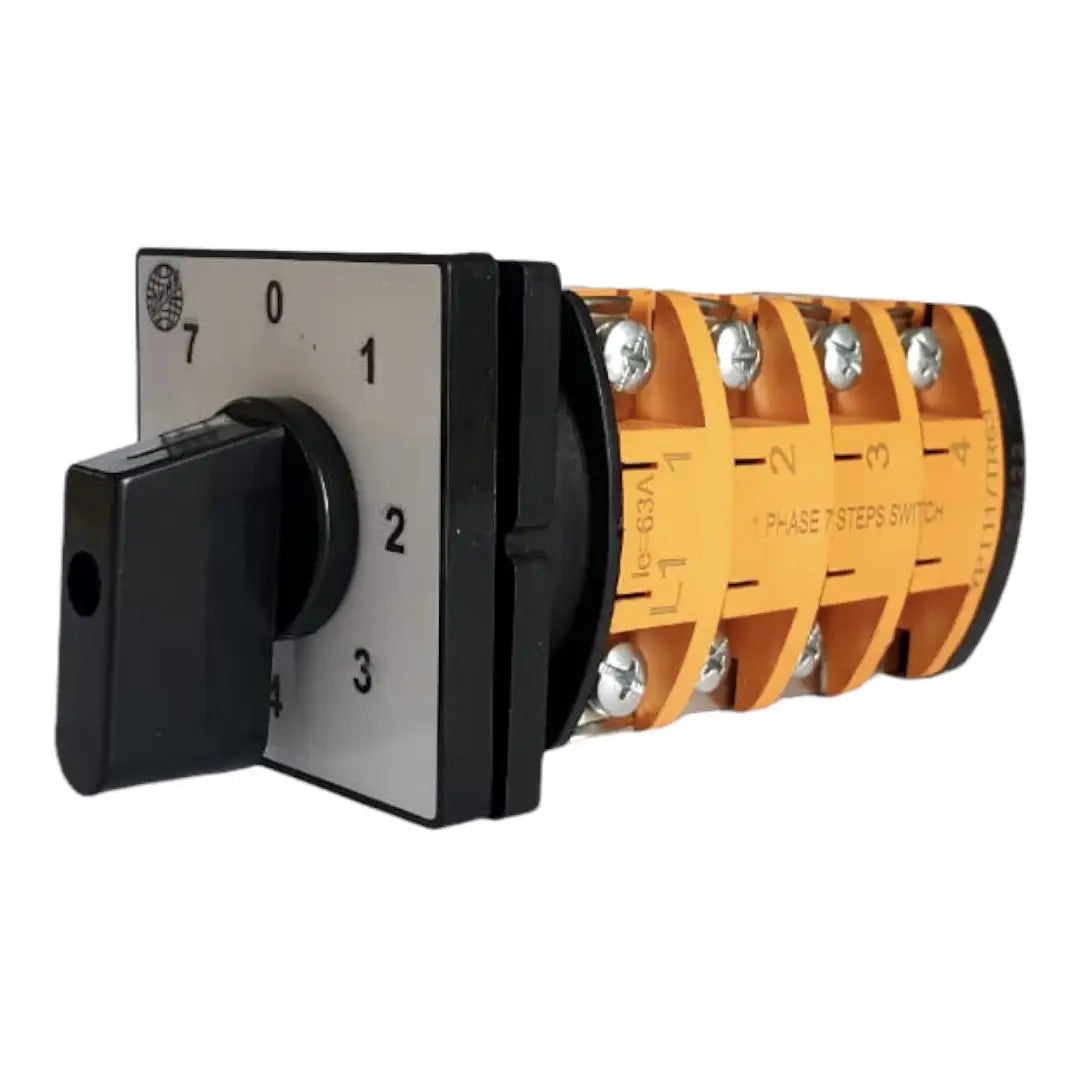

Step switch 0-1-2-3-4-5-6-7 degree rotary switch , 1 pole, 10-160A

Step (step) switch 0-1-2-3-4-5-6-7, rotary switch, 1 pole, 10-160A, YPT117 manufacturer OPAŞ (Turkey)

• 10A, 16A, 25A, 32A, 40A, 63A, 100A

The 0-1-2-3-4-5-6-7 step switch can be used, for example, to switch on one of several appliances / modes / processing program steps etc.

Packet switches are designed for manual switching of low voltage circuits. They are used for making main and control circuits, switching on and off electric motors and other low power devices. The advantages of this series of switches are compact size, electrical and mechanical resistance.

The multi-position scheme 0-1-2-3-4-5-6-7 is used for switching between different modes of operation of the equipment (speed of movement, heating temperature).

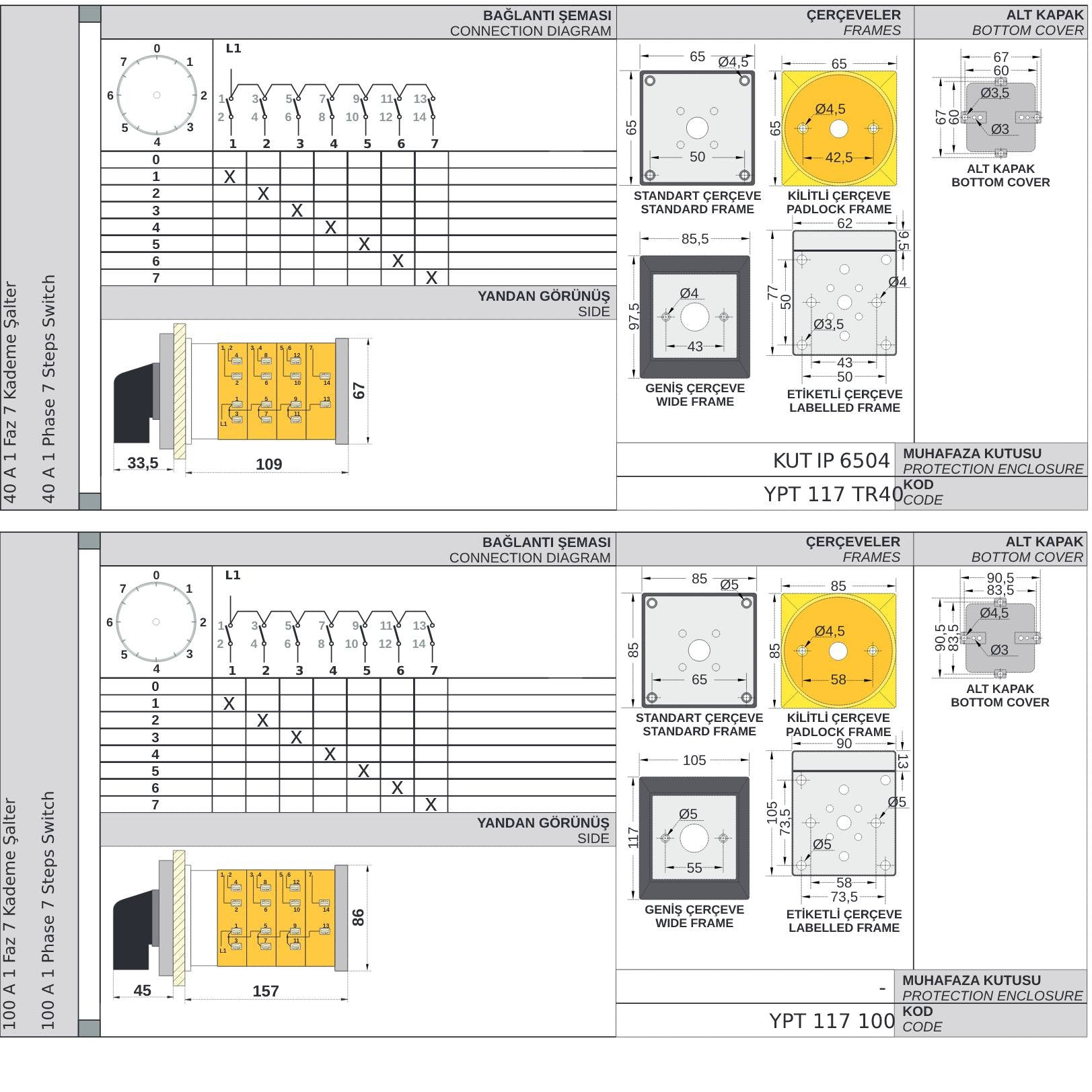

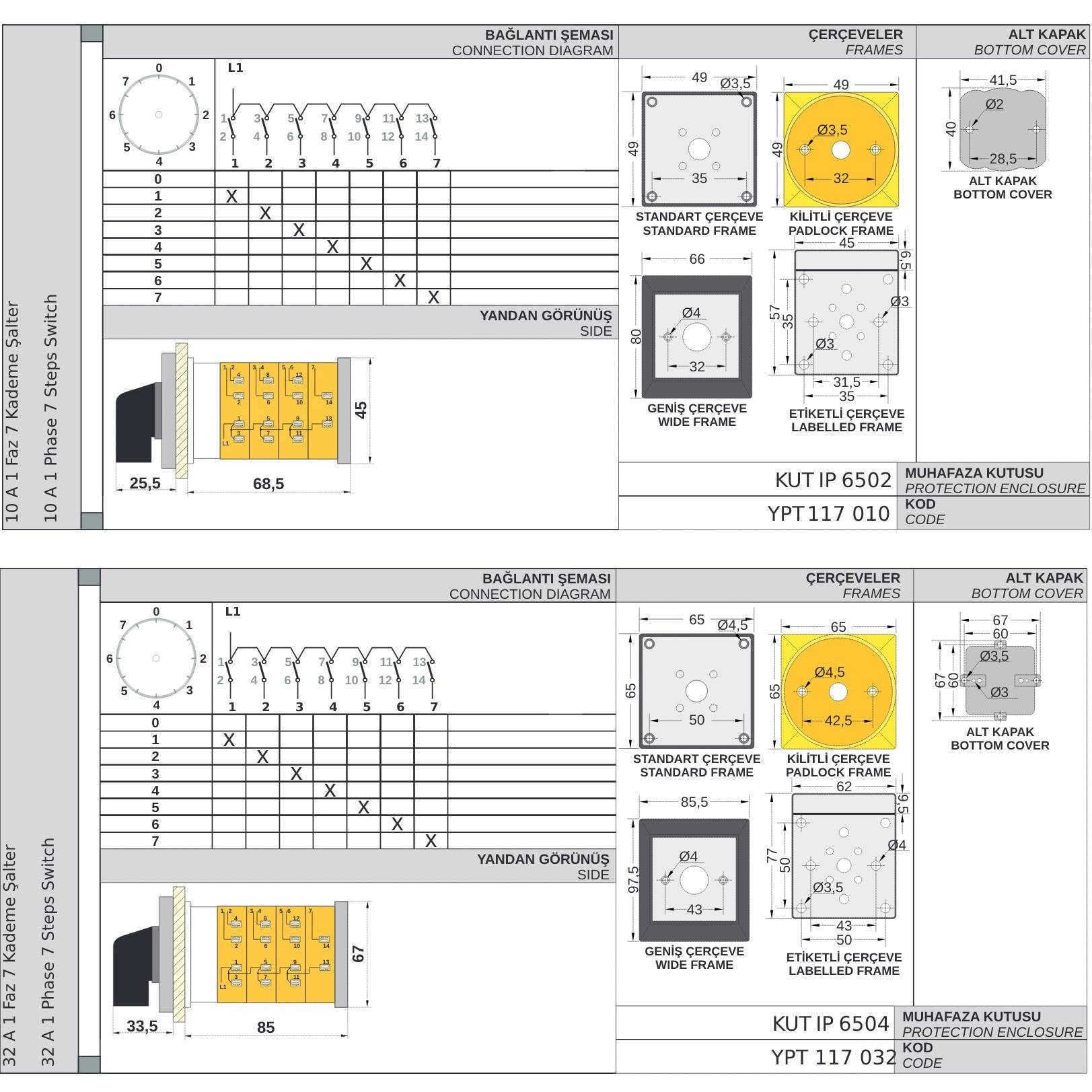

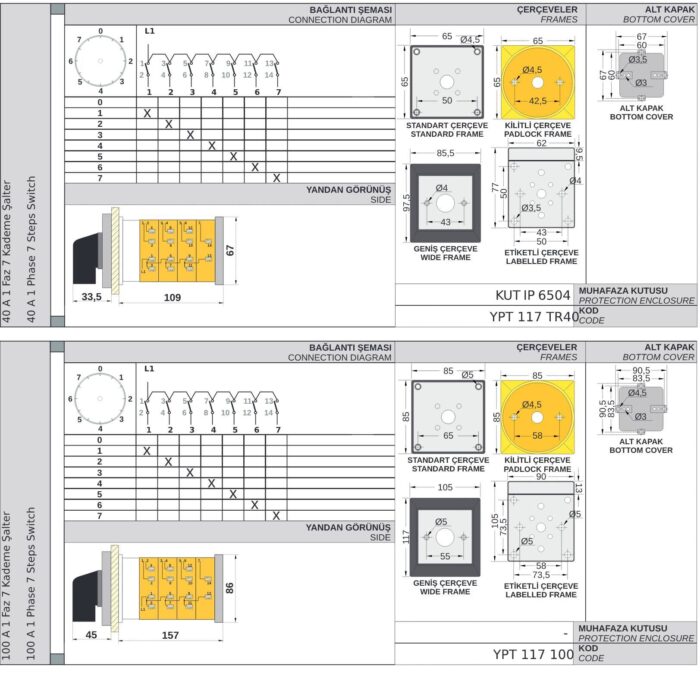

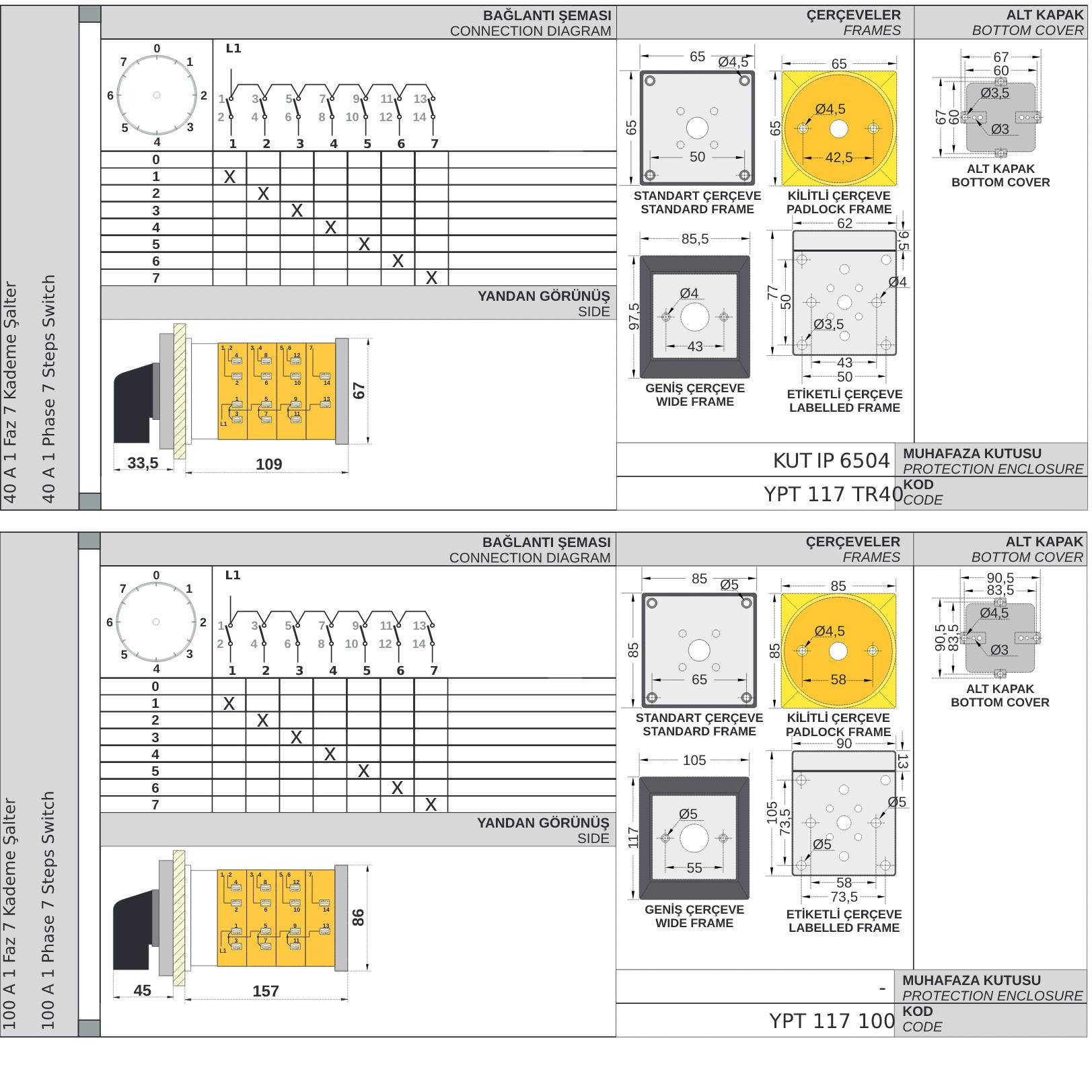

Technical specifications:

• Articulated design.
• Type of device: Rotary switch

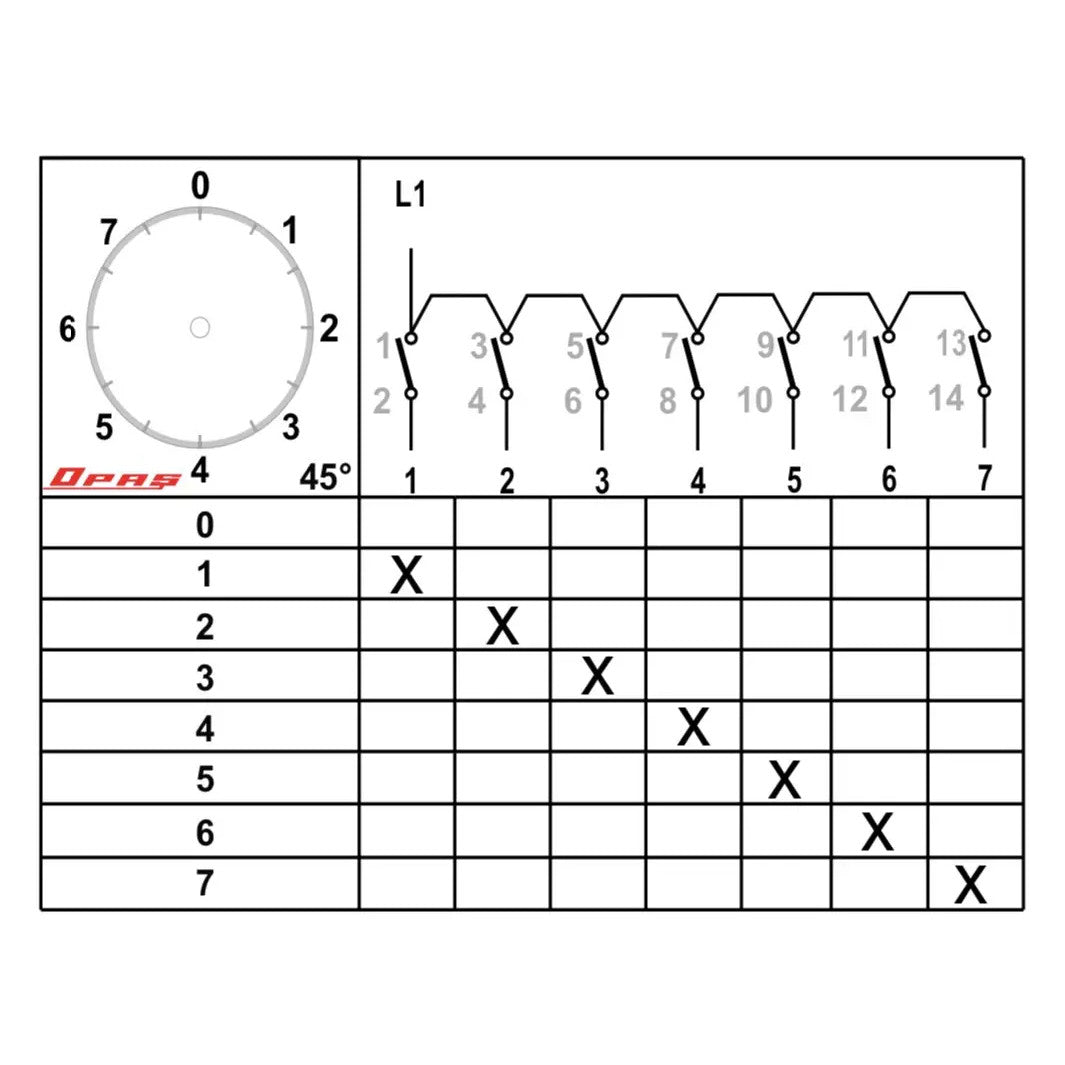

• Switching scheme: 0 – 1 – 2 – 3 – 4 – 5 – 6 – 7
• Number of poles: 1
• Type: Built-in
• Number of phases: single phase
• Protection: No
• Degree of protection against dust and water: IP20
• Operating temperature range: -30 to +55°C
• Manufacturer.
• Country of manufacturer: Turkey
• Number of working positions: 8
