Bimetal thermostat NC switching, switchable, range 0-60°C – temperature switches

Name: Bimetal thermostat NC switching, switchable, range 0-60°C - temperature switches
Brand: OPAS
SKU: PTOT001
Availability: InStock

51,00 lei

65 in stock

Add to wishlist

SKU: PTOT001 Category: Thermostats and Hygrostats Brand: OPAS

Description
Additional information

Description

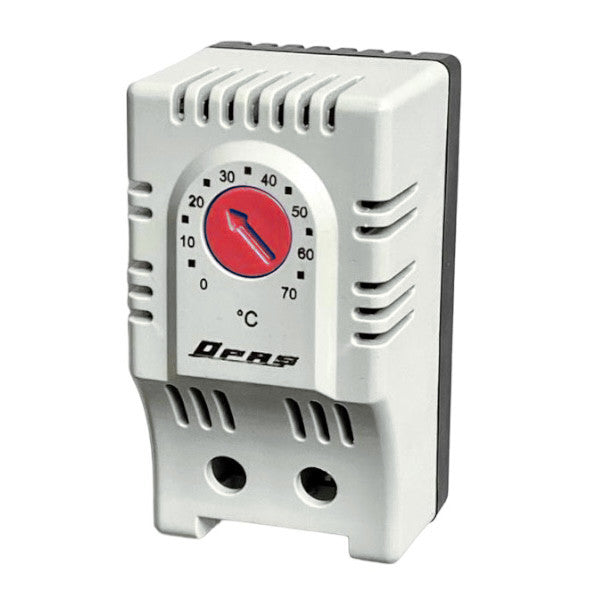

NC bimetal thermostat / temperature switches, 0-60°C, DIN rail mounted.bimetal from OPAŞ

Simple thermostat. 220(250) V AC. Bimetal sensor with type, heating function. electrical connection with 2 terminals 2,5 mm2. mounting mode on 35mm DIN rail, cross rails, on mounting panel.

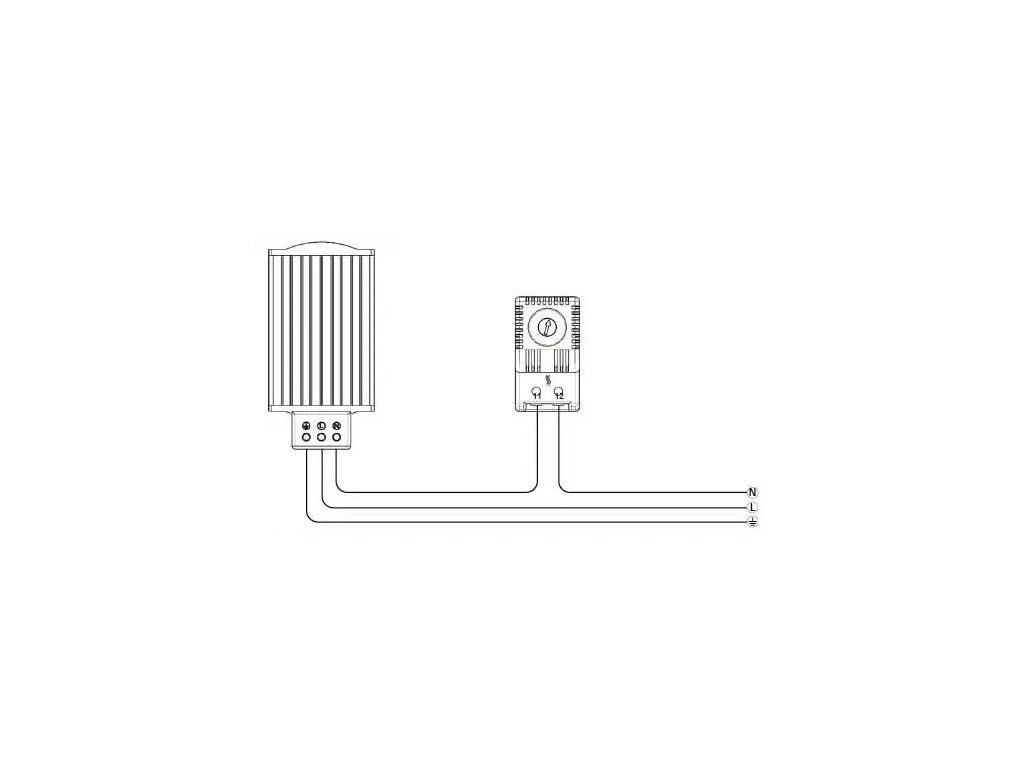

Used to connect j heating elements – heating elements, panel heaters, heated floors, heating cables, heat fans.

Characteristics	PTOT001
Contact type	NC
Setting range	0-60 °C
Potentiometer colour	Red
250V AC / 120V AC	10 (2) A
Sensor type	Bimetal
Contact Type	Snap Action
Lifetime	> 100.000
Electrical connection	2-pole terminal, screw terminals
Plastic material	UL94 V0 ABS Flame Retardant
Degree of protection	IP20
Operating temperature	-25 / +80 °C
Storage temperature	-45 / +80 °C
Installation	DIN rail 35mm
Dimensions HxWxD	61x34x38 mm
Weight	43g
