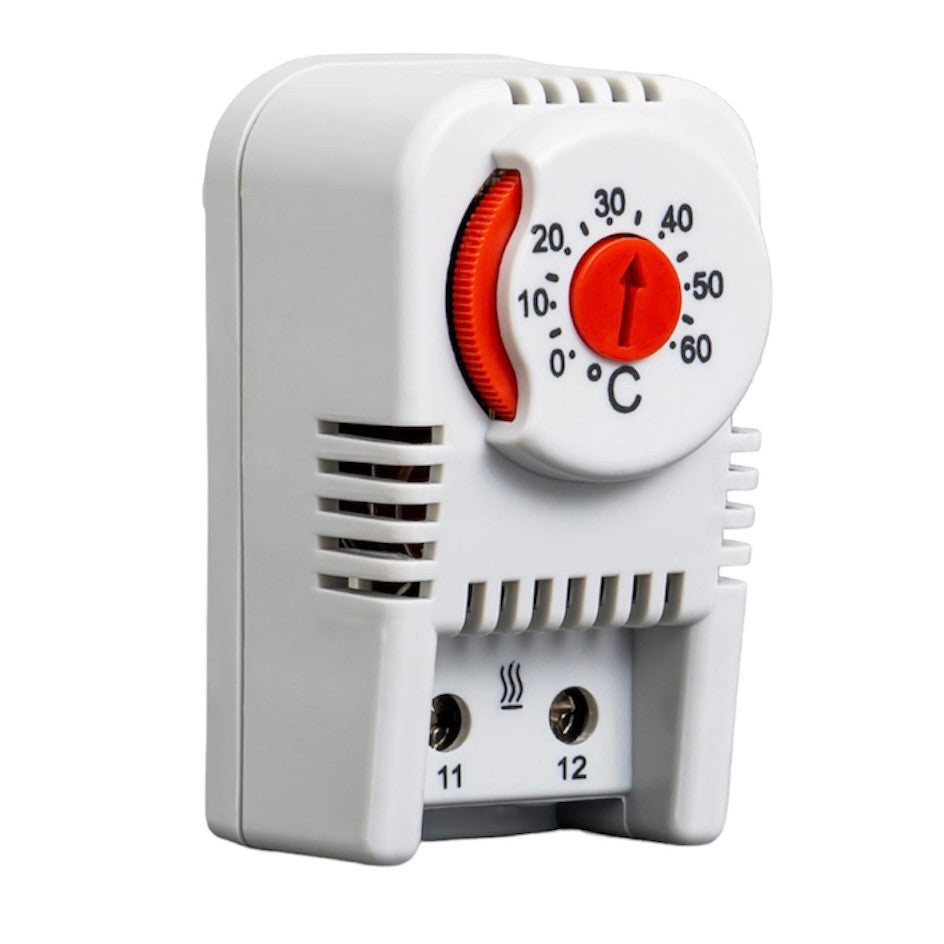

Bimetal thermostat 0-60C NC, PTHT, Plastim
48,00 lei
476 in stock
Thermostat for heating control. Adjustable temperature 0-60°C. DIN rail mounted. 1xNC, Plastim bimetal thermostats.
Simple thermostat. 220(250) V AC. Bimetal sensor with type, heating function. electrical connection with 2 terminals 2,5 mm2. mounting mode on 35mm DIN rail, cross rails, on mounting panel.
Used to connect j heating elements – heating elements, panel heaters, heated floors, heating cables, heat fans
|
Characteristics |
PTHT |
|
Contact type |
NC |
|
Setting range |
0-60°C |
|
Potentiometer colour |
Red |
|
250V AC / 120V AC |
10 (2)A |
|
Sensor type |
Bimetal |
|
Contact Type |
Snap Action |
|
Lifetime |
> 100.000 |
|
Electrical connection |
2-pole terminal, screw terminals |
|
Plastic material |
UL94 V0 ABS Flame Retardant |
|
Degree of protection |
IP20 |
|
Operating temperature |
-25 / +80 °C |
|
Storage temperature |
-45 /+80°C |
|
Installation |
DIN rail 35mm |
|

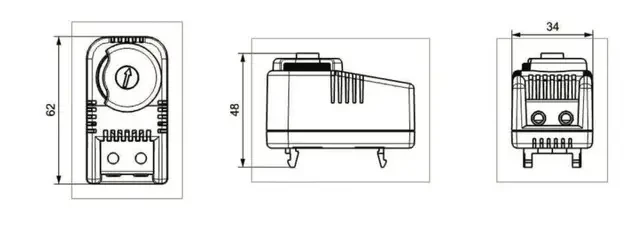

Dimensions HxWxD |
61x34x38 mm |
|
Weight |
45g |
