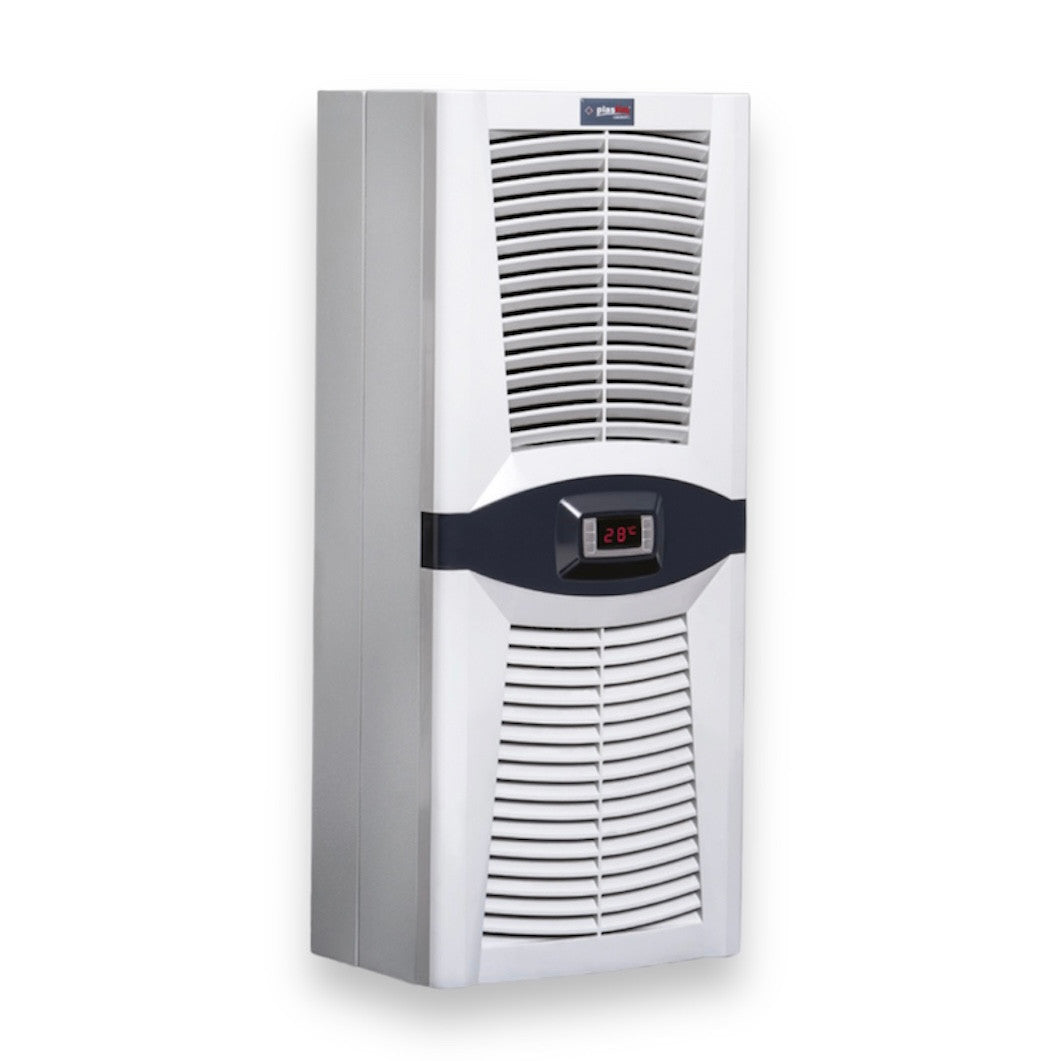

Air conditioning for switchboards / Cooler 2100W, PAD2100.01, Plastim
11.799,00 lei
3 in stock
“Design Series” air conditioner for switchboard / chiller 2500 Watt / 8550BTU for switchboard and automation board side or wall mounting.
The PAD2550.01 (PLASTIM) air conditioner for switchboards features HIGHLY’s state-of-the-art open type rotary compressor, Dixell thermostat, condensate evaporator and limit switch for controlling switchboard door opening.
Everything needed to install the air conditioning for the cabinet is included – gaskets, waste pipe, mounting screws, power connector.
|
TECHNICAL DETAILS |
PAD2100.01 |
|
Cooling Capacity L35 / L35 |
2100W / 7200BTU |
|
Operating Voltage |
230VAC |
|
Frequency |
50/60 Hz |
|
Starting Current |
10A |
|
Operating Current |
3.8A |
|
Fuse |
16A |
|
Power Consumption |
800W |
|
Operational Range |
0-55 °C |
|
Thermostat Factory Setting |
35 °C |
|
Differential |
4 °C |
|
Max. Air Volume Internal Circuit |
510 m³/h |
|
Max. Air Volume External Circuit |
625 m³/h |
|
Type of Refrigerant |
R134a |
|
Amount of Refrigerant |
700gr |
|
Dimensions |
980x430x270mm |
|
Weight |
46kg |
|
Sound Level |
80dB |
|
Protection Degree (Internal Circuit) |
IP 54 |
|
Protection Degree (External Circuit) |
IP 34 |
|
Color |
RAL7035 |
|
Compressor |
HIGHLY/HITACHI |
|
Compressor Type |
Rotary |
|
Fans |
EBMPAPST |
|
Mounting Method |
Wall Mount |
