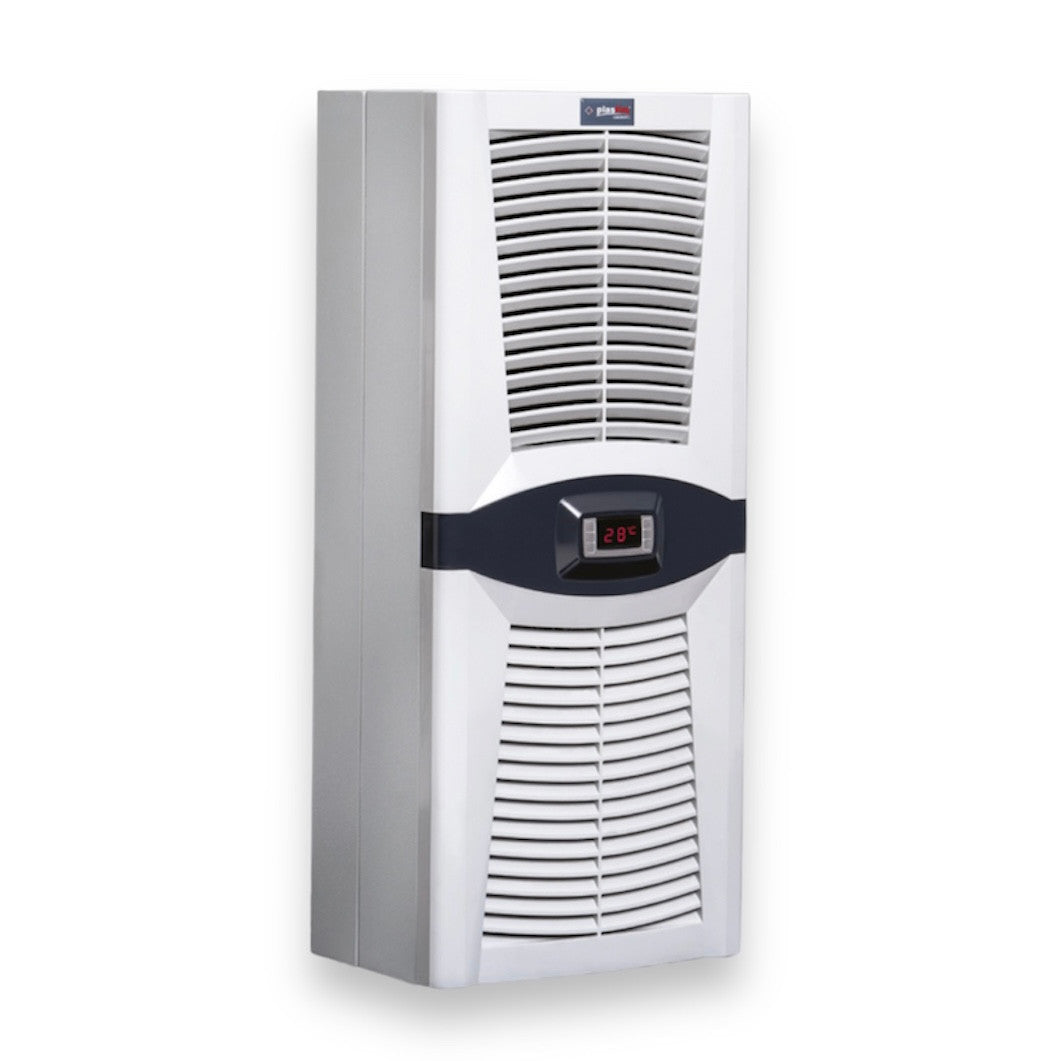

Air conditioning for switchboards / Cooler 1100W, PAD1100.01, Plastim
8.073,00 lei
3 in stock
Description
“Design Series” Air Conditioner for switchboard/cooler 1100 Watt / 3800BTU for switchboard and automation board side or wall mounting.
The PAD1100.01 (PLASTIM) air conditioner for switchboards is equipped with a modern open type rotary compressor from HIGHLY, a Dixell thermostat, a condensate evaporator and a limit switch to control the opening of the switchboard door.
Everything needed to install the air conditioning for the cabinet is included – gaskets, waste pipe, mounting screws, power connector.
| TECHNICAL DETAILS | PAD1100.01 |
| Cooling Capacity L35 / L35 | 1100W / 3800BTU |
| Operating Voltage | 230VAC |
| Frequency | 50/60 Hz |
| Starting Current | 7.2A |
| Operating Current | 2.5A |
| Fuse | 10A |
| Power Consumption | 575W |
| Operational Range | 0-55 °C |
| Thermostat Factory Setting | 35 °C |
| Differential | 4 °C |
| Max. Air Volume Internal Circuit | 340 m³/h |
| Max. Air Volume External Circuit | 590 m³/h |
| Type of Refrigerant | R134a |
| Amount of Refrigerant | 310gr |

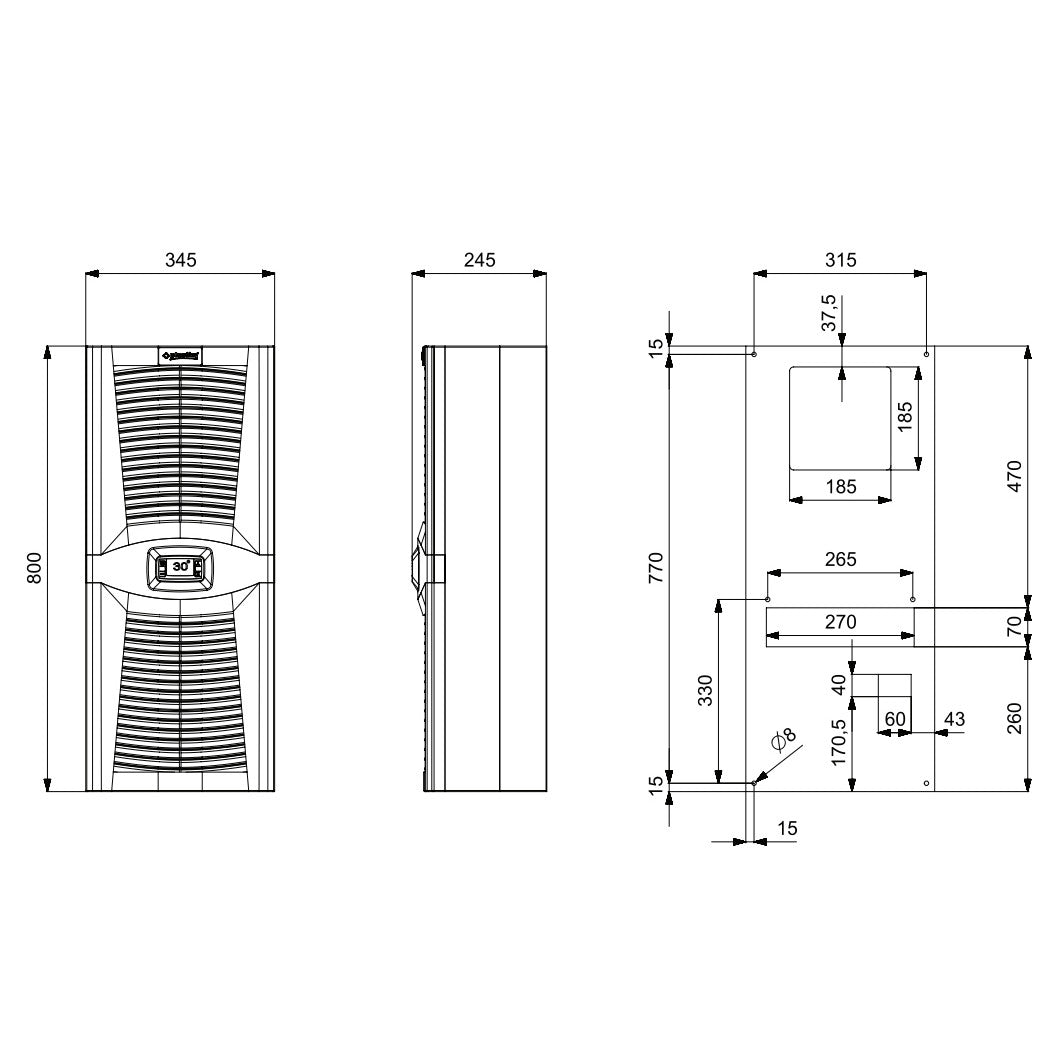

| Dimensions | 800x345x223mm |
| Weight | 32kg |
| Sound Level | 76dB |
| Protection Degree (Internal Circuit) | IP 54 |
| Protection Degree (External Circuit) | IP 34 |
| Color | RAL7035 |
| Compressor | HIGHLY/HITACHI |
| Compressor Type | Rotary |
| Fans | EBMPAPST |
| Mounting Method | Wall Mount |
