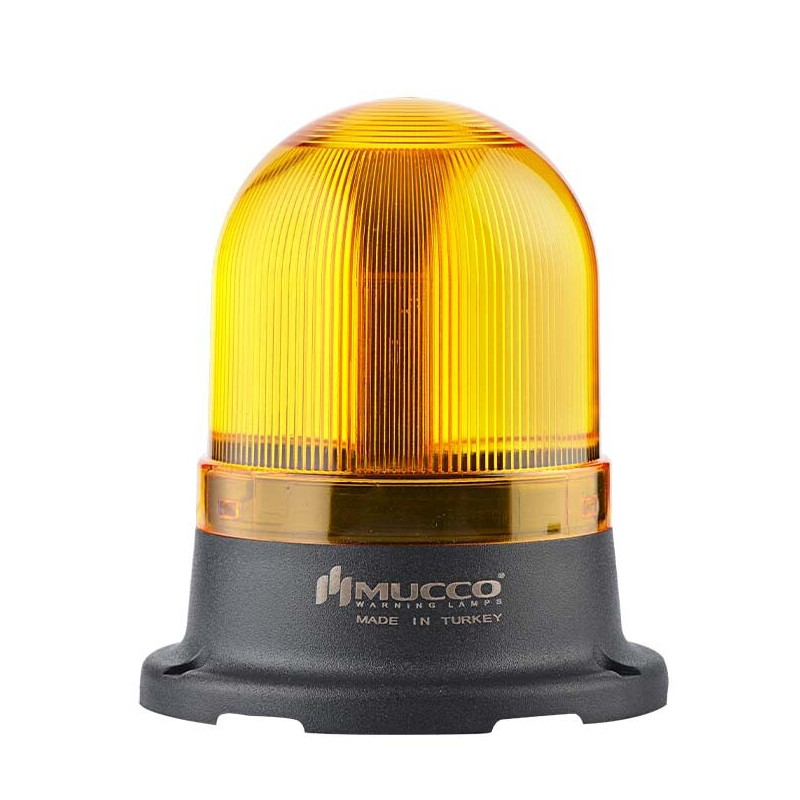

5 MODES ø100 UNIV. SIGNAL BEACON WITH AUDIBLE SIGNAL, 12-24 V AC/DC, YELLOW

Rated voltage, inrush current

12-24 V AC/DC

140-144 mA ±10 %

Degree of protection

IP65, water, dust, heat and UV resistance

Cover colour

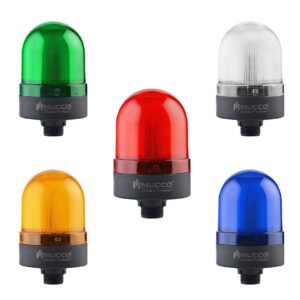

Red, yellow, green, blue, white

Light source

SMD LED

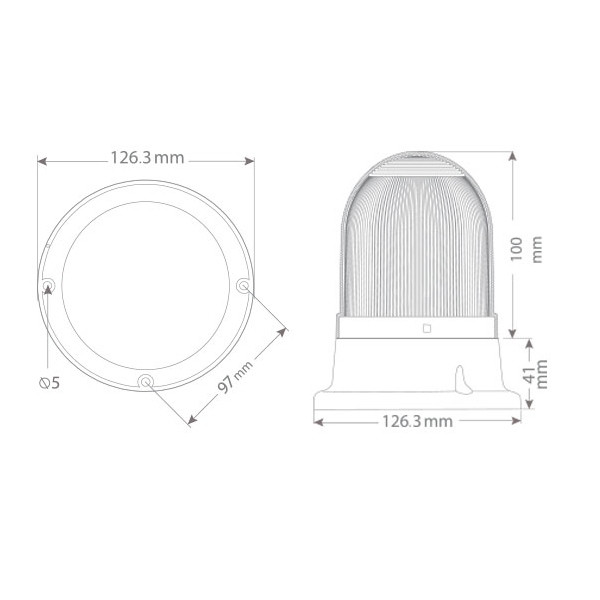

Cover diameter

ø100 mm

Volume

188~112dB/1m – can be adjusted by internal potentiometer

Opticalsignaltype

steady light, flashing, strobe, rotation – can be adjusted by internal button

Acoustic signal type

buzzer, 10 tones – can be set by internal button

Input response

On/off: max. 10 ms

Operating temperature

-20 °C to +50 °C (-4 °F to +122 °F)

Life expectancy

Minimum 50,000 hours

Material

ABS (body) + polycarbonate (cover)

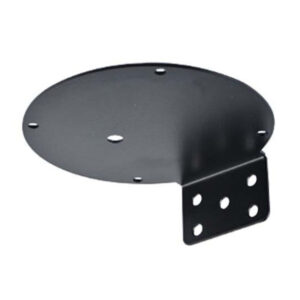

Mounting method

Surface, wall

Certificates and quality documents

ISO-9001, CE, RoSH2 and EAC
